5E3 5F1 Champ Build from 1953-54 Components (Crestwood Reel)

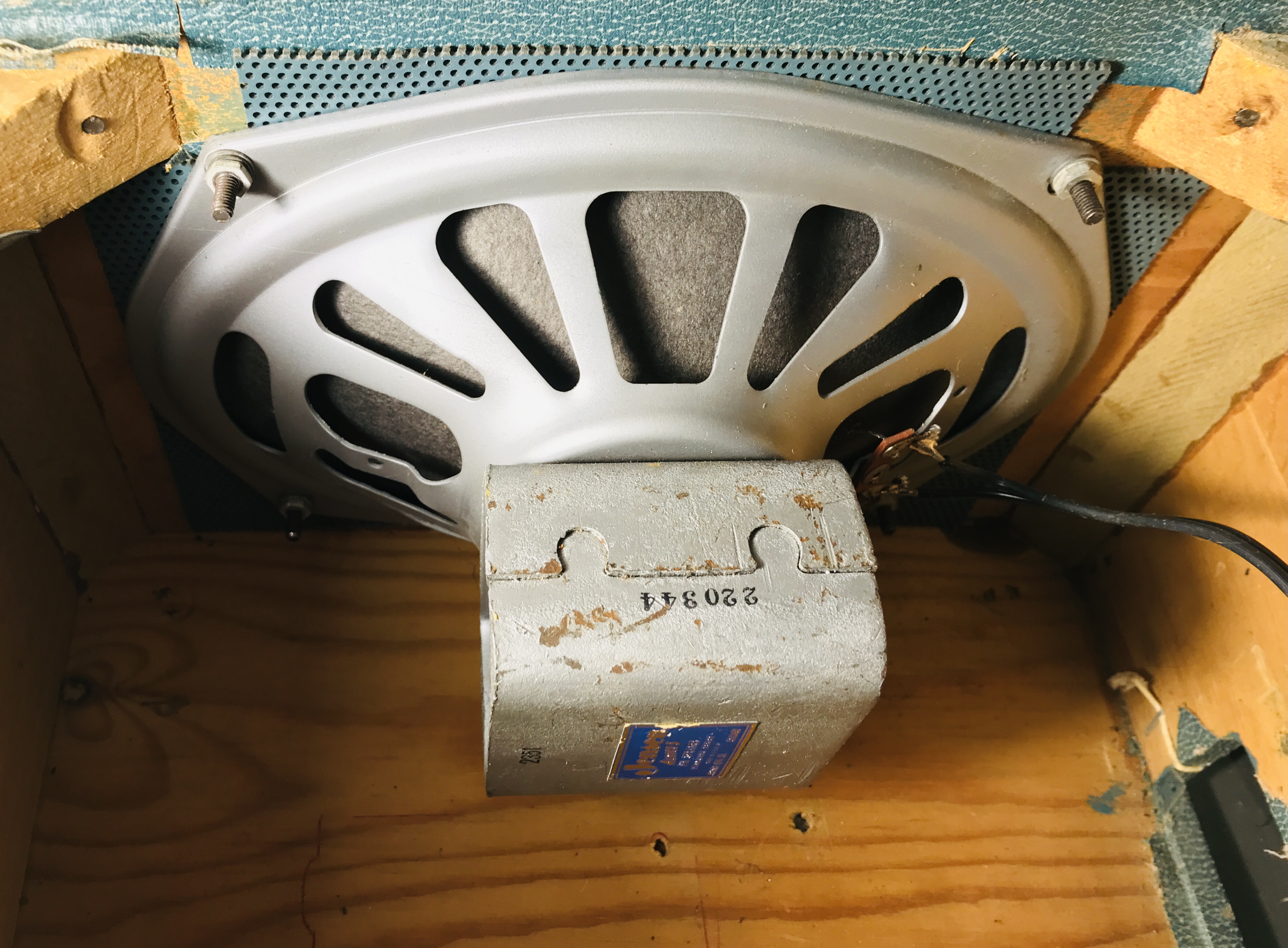

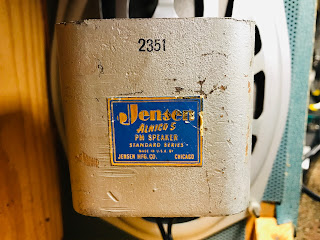

-Jensen Alnico PM 2351 220344 (34th week of '54)

-Box 464 (46th of '54)

-Sticker, hand written 5/2/55 pencil date on masking tape

-Original pot was dated '53

-Has ext out for 8ohm Speaker/cab

-Cap job'd, updated plate load, node resistors, cathode bias

-Test High Voltages: B+ 347vdc, 250v, 217v, 339v P, 250v S, 14.4v k

-Clock Output on speaker: 5.6vac, 6.2vac @6ohms ~5.8w RMS, 6.4w Peak Power

The aged wood and big box really resonate. Blindfolded this might sound better than my two tweed Champs. Wow.
